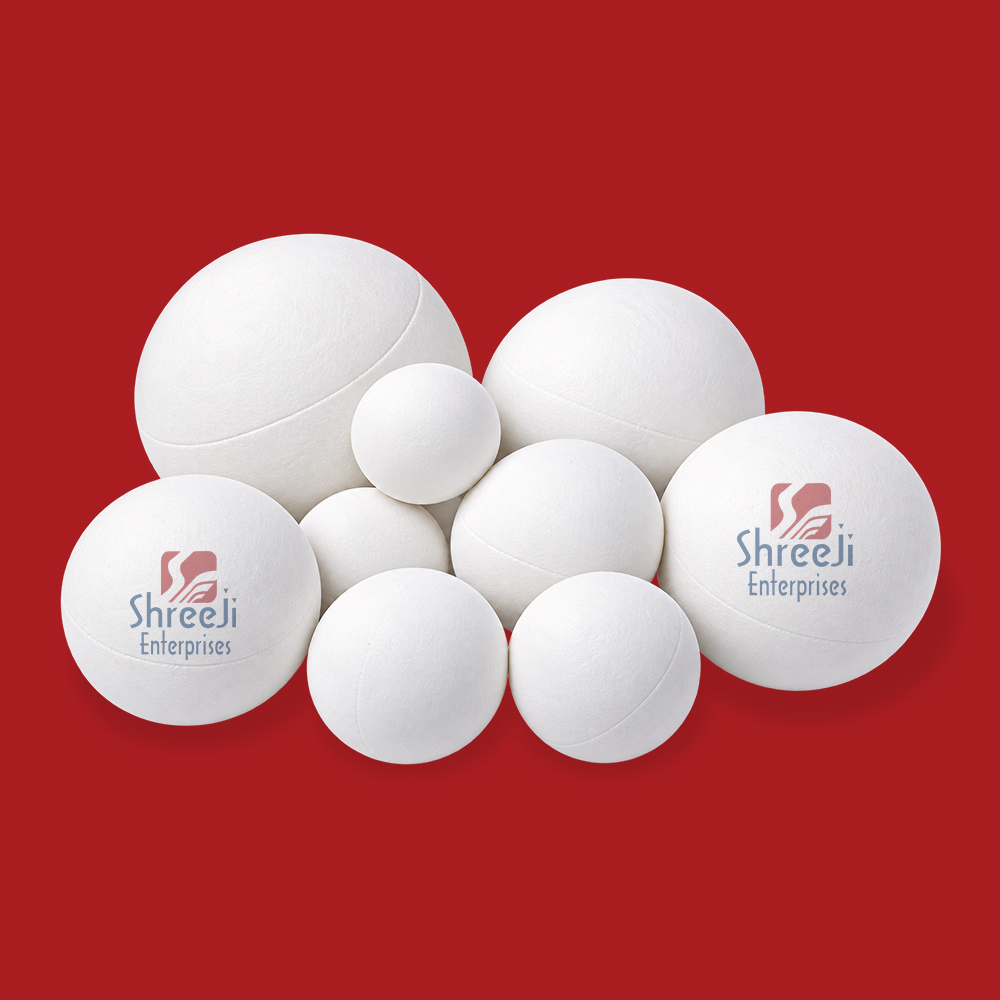

FEATURES
- High hardness ensures prolonged resistance to chipping and cracking
- Long term benefits are attractive as it is a cost effective alternative to conventional media
- Media replacement and make-up charge levels drop significantly with the use of CUMITUFF High Alumina Grinding media
- Media induced product contamination is practically nil when CUMITUFF is used, leading to better quality mill output
Technical Details
APPLICATIONS
- Granito / Tiles Floor and wall tiles
- Ceramic Glazes / Fritz and colours
- Paints / Food Industry
- Mineral Processing (Zirflour, Quartz, Silica, Feldspar, Calcite)
Product Details
S.No | Attributes | Unit | Value |
---|---|---|---|
1 | Alumina Content | % | 90 |
2 | Density | g/cc | 3.55 |
3 | Colour | – | White |
4 | Flexural Strength | MPa | 270 |
5 | Rock well Hardness | R45N% | 75 |
6 | Vickers Hardness(HV10) | Kg/mm2 | 1030 |
7 | Vickers Hardness(HV5) | Kg/mm2 | 1060 |
8 | Vickers Hardness(HV1) | Kg/mm2 | 1400 |
9 | Vickers Hardness(HV0.5) | Kg/mm2 | 1460 |
10 | Fracture Toughness | MPa.m0.5 | 3-4 |
11 | Thermal Expansion Coefficient (25 – 1000°C | 1X10-6/°c | 8.0 |
